LB13

1. characteristics

Type Thickness(mm) A[2856k] D65 Chemical Stability ND α×10-7(℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB13 1 0.352 0.568 15.1 0.284 0.554 16.9 1 3 1.527 98 597 663 2.53



2. Technical Indexes

Type Thickness(mm) 360(nm) 420(nm) 480(nm) 540(nm) 550(nm) 620(nm) 650(nm) 680(nm)
LB13 1     ≤13.8 17.4~30.3   ≤12.6 ≥72.5



3. Class Of Bubble、Stripe、Stress

Type Bubble Stripe Stress
LB13 C-B 4 3

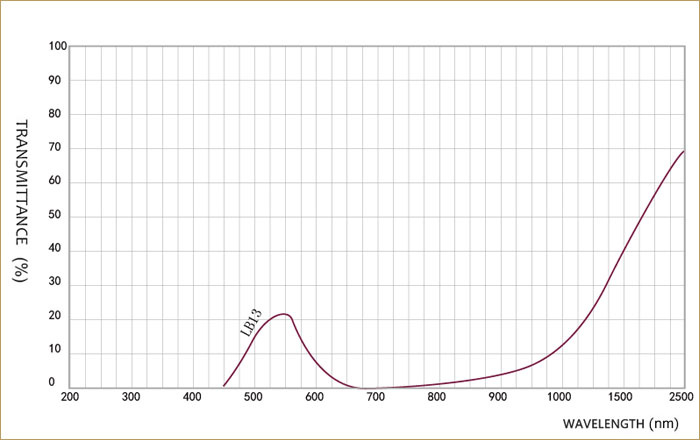

4. Transmittance
