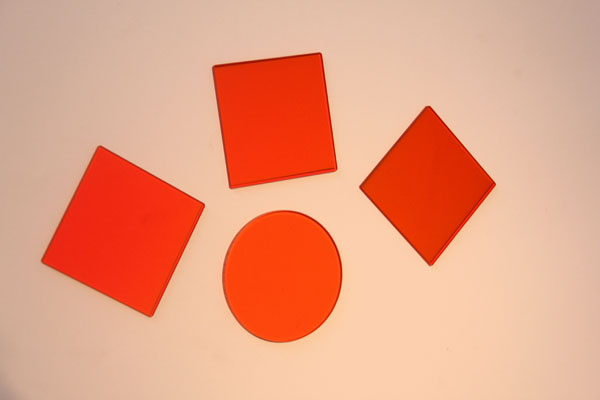

Orange glass

1. Characteristics

Type Thickness
(mm)
A[2856k] D65 Chemical Stability ND α×10-7
(℃)
Tg
(℃)
Ts
(℃)
S
x y Y x y Y DA DW
CB535 2 0.549 0.448 82.2 0.504 0.492 70.2 3 2 1.523 103 527 605 2.64
CB550 2 0.594 0.405 63.6 0.569 0.430 48.4 3 2 1.523 103 527 605 2.64
CB565 2 0.622 0.377 51.6 0.605 0.395 36.7 3 2 1.523 103 527 605 2.64
CB580 2 0.658 0.342 35.9 0.649 0.351 23.3 1 2 1.523 103 527 605 2.64

2. Technical Indexes

Type Thickness
(mm)
λtj
(nm)
λ0
(nm)
Tλ0
(%)
K
CB535 2 535 ± 10 650 ≥88.7 ≥1.2
CB550 2 550 ± 10 650 ≥88.7 ≥1.2
CB565 2 565 ± 10 650 ≥88.7 ≥1.2
CB580 2 580 ± 10 650 ≥88.7 ≥1.2

3. Class Of Bubble、Stripe、Stress

Type Bubble Stripe Stress
CB535 C-B 3C 3
CB550 C-B 3C 3
CB565 C-B 3C 3
CB580 C-B 3C 3

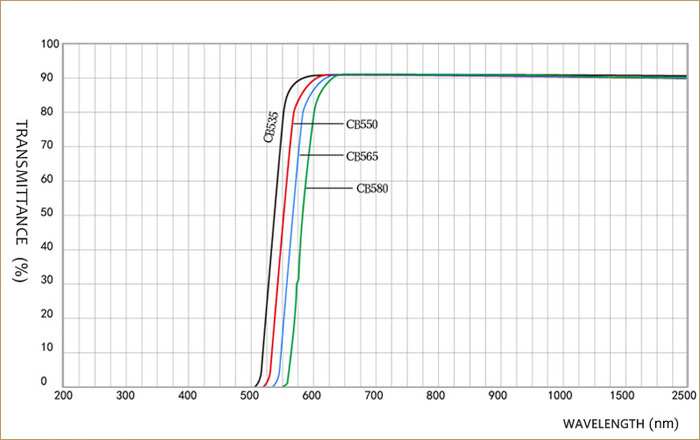

4. Transmittance
