QB29

1. characteristics

Type Thickness(mm) A[2856k] D65 Chemical Stability ND α×10-7(℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
QB29 2 0.151 0.033 0.7 0.154 0.026 1.8 1 2 1.517 93 477 550 2.56



2. Technical Indexes

Type Thickness(mm) 320(nm) 334(nm) 350(nm) 405(nm) 480(nm) 600(nm) 633(nm) 694(nm) 750(nm)
QB29 2 ≤23.0     380≥83.0 ≤22.0 ≤0.1   ≤14.7



3. Class Of Bubble、Stripe、Stress

Type Bubble Stripe Stress
QB29 C-B 3C 3

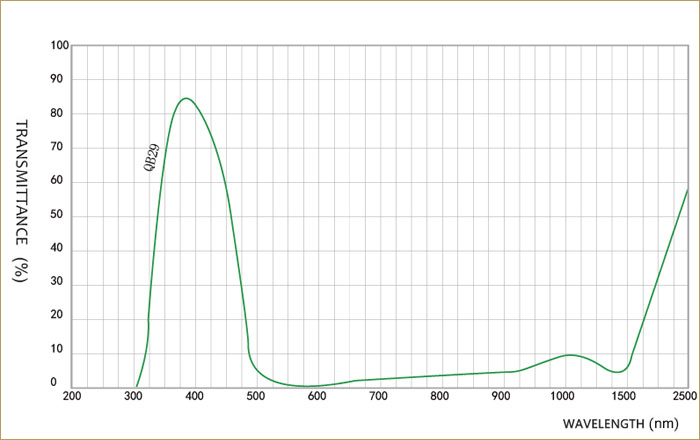

4. Transmittance
